Ndfeb Magnet
Pioneers in the industry, we offer magnetic retrieving baton with release, easy-clean magnetic separator, in-line tube magnet, hopper magnet manufacturers, permanent magnetic lifters and prong magnet manufacturers from India.
Our Products

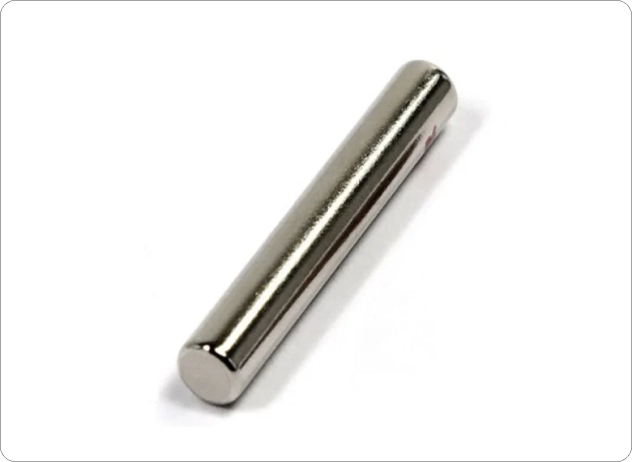

Magnetic Rod Manufacturers
₹2100/Piece
Minimum Order Quantity: 1 Piece
Product Details
Dimensions
27 mm Dia
Thickness
150 mm
Shape
Rod (Cylinder)
Material
Neodymium
Applications
Magnetic Separators / Lifting Apparatus / Magnetic Clamps
Plating / Coating
Ni-Cu-Ni
Colour
Silver
Surface Gauss
10000-12000Gauss
Magnet Grade
N35, N40
Maximum Working Temperature (Deg. C)
200 Deg. C
Dimensional Tolerance
+-0.05 mm
Standards
ANSI, ASTM, ASME
Country Of Origin
Made In India

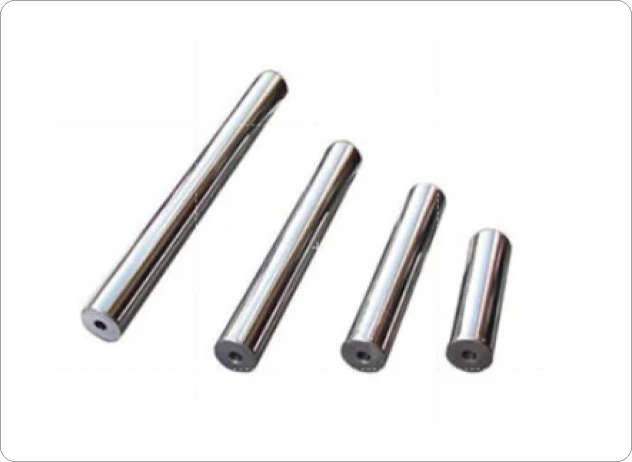

Shree Vishwakarma Magnets Magnetic Rod or Tube or Bar is world class when it comes to magnetic strengths and precision in dimensions. These rods are made up of magnets, which are fitted inside seam less drawn and heat treated SS 304 L tubes. The thickness of the tubes is optimized to obtain highest efficiency of the magnets inside. Magnets are hard ferrite ceramic magnets or high intensity rare earth magnets. The overall construction of the magnetic grills can also be made as per the customer specification and sizes. This Magnetic Rod, when optimized to handle flow rates and high ferrous material deposition levels, serve as the heart of Shree Vishwakarma Magnets Magnetic grills and Magnetic Filters.
Industries Using Magnetic Rod:
- Plastic
- Food Products. (Sugar, Coffee, Tea, Grains, Pulses, Flour, Spices, Milk etc.)
- Pharmaceutical
- Chemical
- Ceramic
- Colors / Paints
- Pigments
- Ink
- Refractory
General Information:
- Magnetic Rods in Diameter other that 27mm also available.
- Tapping M8 x 15 mm deep can be provided at one end OR both end as desired.
- Can be supplied is SS 316 also.
- Easy clean rods are available.
- Long heavy duty rods for chain type coolant systems are available.
- Customized rods designs available.
- Low intensity magnetic rods have Gauss values 2,500 and High Intensity Magnetic Rods have a Gauss value of 10,500.
- Rods with intermediate Gauss values are also available.
- Medium and High intensity magnetic Rods with Maximum operating temperature of 200’C available.
